CNB

LAGOON SIXTY 5

Context

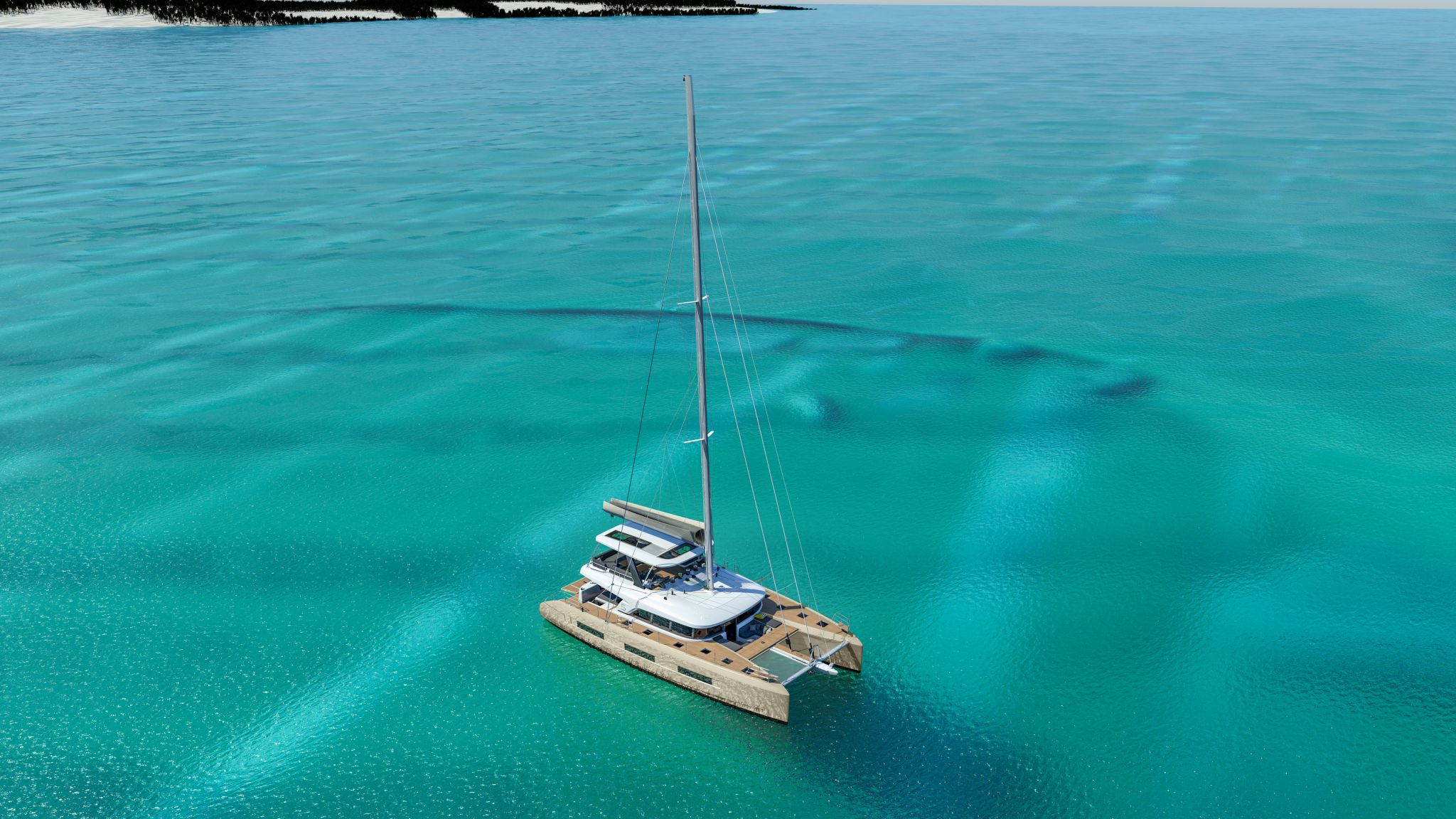

The Lagoon Sixty 5 cruising catamaran is the admiral ship of the Lagoon fleet

Designed by naval architecs VPLP in Paris and built by CNB shipyard

Gsea Design was in charge of validating the proposed internal structure and hull / deck scantlings in order to comply with the Bureau Veritas regulation codes.

realization

Full composite shell FEA shell model of the boat using the shipyard specific materials

Analysis of the scantlings with various loadcases:

Local loads like hydrostatic pressure on the hull and deck

Global loads in accordance to the Bureau Veritas regulation (broaching…)

Analysis of specific problems like bulkheads or openings deformation, handling of the deck when lifted, all rig related reinforcements…

Technical environment

Analyse FEA

Certification
